自己写了两个ESP32cam的图传程序

一个是websocket TCP通信，另一个是http通信

TCP图传通信代码

import socket
import network
import camera
import time
import random
import gc
import machine

###-----该模块为CAM2,监测right视角-----###
###  端口53002

# 配置选项
MAX_RECONNECT_ATTEMPTS = 5  # 最大重连尝试次数
RECONNECT_DELAY = 3  # 重连延迟时间(秒)
IMAGE_QUALITY = 12  # 图像质量(0-63，值越小质量越高)
#FRAME_SIZE = camera.FRAME_VGA  # 图像尺寸
FRAME_RATE = 20  # 每秒帧数
LOW_POWER_MODE = False  # 低功耗模式

# 主要WiFi配置
MAIN_SSID = 'HUAWEI_IOT_node'  # 主要WiFi名称
MAIN_PASSWORD = '111gogogo'  # 主要WiFi密码
MAIN_SERVER_IP = '192.168.8.8'  # 主要服务器IP地址
MAIN_SERVER_PORT = 53002  # 主要服务器端口号

# 备用WiFi配置列表
BACKUP_WIFI_LIST = [
    {
        'SSID': 'backup_iot_node',  # 备用WiFi名称1
        'PASSWORD': '111gogogo',  # 备用WiFi密码1
        'SERVER_IP': '192.168.140.225',  # 备用服务器IP地址1
        'SERVER_PORT': 53005  # 备用服务器端口号1
    },
    {
        'SSID': 'backup_iot_node2',  # 备用WiFi名称2
        'PASSWORD': '111gogogo',  # 备用WiFi密码2
        'SERVER_IP': '192.168.177.225',  # 备用服务器IP地址2
        'SERVER_PORT': 53005  # 备用服务器端口号2
    },
    {
        'SSID': 'backup_iot_node3',  # 备用WiFi名称3
        'PASSWORD': '111gogogo',  # 备用WiFi密码3
        'SERVER_IP': '192.168.140.227',  # 备用服务器IP地址3
        'SERVER_PORT': 53005  # 备用服务器端口号3
    }
]

# 当前使用的WiFi配置
SSID = MAIN_SSID
PASSWORD = MAIN_PASSWORD
SERVER_IP = MAIN_SERVER_IP
SERVER_PORT = MAIN_SERVER_PORT

# 是否使用备用WiFi配置
using_backup_wifi = False
# 当前使用的备用WiFi索引（-1表示使用主WiFi）
current_backup_index = -1

# 全局变量
connection_attempts = 0
last_connection_time = 0

# 扫描并打印详细的附近Wi-Fi信息，检查是否需要使用备用WiFi
def scan_wlan():
    global SSID, PASSWORD, SERVER_IP, SERVER_PORT, using_backup_wifi, current_backup_index
    try:
        wlan = network.WLAN(network.STA_IF)
        wlan.active(False)
        wlan.active(True)
        mac_address = wlan.config('mac')
        print("MAC Address:", mac_address)
        mac_address_hex = ':'.join(['{:02x}'.format(b) for b in mac_address if b != 44])  # 过滤掉非十六进制字符，如逗号
        print("Human-readable MAC Address:", mac_address_hex)

        print("正在扫描附近Wi-Fi...")
        nets = wlan.scan()
        print("附近的Wi-Fi信息：")

        # 存储所有可用的SSID
        available_ssids = []

        for wifi in nets:
            # 检查元素是否为字节串并解码
            ssid = wifi[0].decode('utf-8') if isinstance(wifi[0], bytes) else wifi[0]
            bssid = ':'.join(['{:02x}'.format(b) for b in wifi[1]])
            channel = wifi[2]
            signal = wifi[3]

            # 添加到可用SSID列表
            available_ssids.append(ssid)

            # 打印所有信息
            print(f"SSID: {ssid}, BSSID: {bssid}, 信道: {channel}, 信号强度: {signal} dBm")

        # 首先检查主要SSID是否可用
        if MAIN_SSID in available_ssids:
            print(f"找到主要WiFi: {MAIN_SSID}，使用主要WiFi配置")
            SSID = MAIN_SSID
            PASSWORD = MAIN_PASSWORD
            SERVER_IP = MAIN_SERVER_IP
            SERVER_PORT = MAIN_SERVER_PORT
            using_backup_wifi = False
            current_backup_index = -1
        else:
            # 主要SSID不可用，逐个检查备用WiFi列表
            print(f"未找到主要WiFi: {MAIN_SSID}，开始检查备用WiFi列表")
            found_backup = False

            for i, backup_config in enumerate(BACKUP_WIFI_LIST):
                backup_ssid = backup_config['SSID']
                if backup_ssid in available_ssids:
                    print(f"找到备用WiFi[{i+1}]: {backup_ssid}，使用此备用WiFi配置")
                    SSID = backup_config['SSID']
                    PASSWORD = backup_config['PASSWORD']
                    SERVER_IP = backup_config['SERVER_IP']
                    SERVER_PORT = backup_config['SERVER_PORT']
                    using_backup_wifi = True
                    current_backup_index = i
                    found_backup = True
                    break

            if not found_backup:
                print("警告：未找到任何可用的WiFi网络，将继续使用主要WiFi配置尝试连接")
                SSID = MAIN_SSID
                PASSWORD = MAIN_PASSWORD
                SERVER_IP = MAIN_SERVER_IP
                SERVER_PORT = MAIN_SERVER_PORT
                using_backup_wifi = False
                current_backup_index = -1

        print(f"当前使用的WiFi配置: SSID={SSID}, SERVER_IP={SERVER_IP}, SERVER_PORT={SERVER_PORT}")
        return True
    except Exception as e:
        print(f"Wi-Fi扫描出错: {e}")
        return False

# 连接到WiFi网络
def connect_wifi():
    global connection_attempts, last_connection_time, SSID, PASSWORD

    # 检查是否需要等待重连
    current_time = time.time()
    if current_time - last_connection_time < RECONNECT_DELAY and connection_attempts > 0:
        wait_time = RECONNECT_DELAY - (current_time - last_connection_time)
        if wait_time > 0:
            print(f"等待 {wait_time:.1f} 秒后重试连接...")
            time.sleep(wait_time)

    wlan = network.WLAN(network.STA_IF)
    wlan.active(True)

    if not wlan.isconnected():
        # 增加连接尝试次数
        connection_attempts += 1
        last_connection_time = time.time()

        print(f'正在连接WIFI... (尝试 {connection_attempts}/{MAX_RECONNECT_ATTEMPTS})')
        try:
            wlan.connect(SSID, PASSWORD)  # 连接到指定的WiFi网络

            # 设置连接超时
            timeout = 15  # 15秒超时
            start_time = time.time()
            i = 1

            while not wlan.isconnected():
                if time.time() - start_time > timeout:
                    print("连接超时！")
                    break

                print(f"正在连接...{i}", end='\r')
                i += 1
                time.sleep(1)  # 每次循环等待1秒

            if wlan.isconnected():
                connection_attempts = 0  # 重置连接尝试次数
                print('\nWIFI连接成功!')
                print('WIFI网络配置信息:', wlan.ifconfig())
                return True
            else:
                print("\nWIFI连接失败!")
                if connection_attempts >= MAX_RECONNECT_ATTEMPTS:
                    print(f"已达到最大重连次数({MAX_RECONNECT_ATTEMPTS})，将重置设备...")
                    time.sleep(1)
                    machine.reset()  # 重置设备
                return False

        except Exception as e:
            print(f"WIFI连接出错: {e}")
            return False
    else:
        print('WIFI已连接')
        print('WIFI网络配置信息:', wlan.ifconfig())
        return True

# 初始化摄像头
def init_camera():
    try:
        print("初始化摄像头...")
        camera.deinit()
        camera.init()

        # 设置摄像头参数
        #camera.framesize(camera.FRAME_XGA)  # 设置帧大小
        camera.flip(0)  # 根据需要调整摄像头方向
        camera.mirror(1)  # right不翻转
        camera.quality(IMAGE_QUALITY)  # 设置图像质量
        camera.contrast(2)  # 增加对比度
        camera.brightness(1)  # 调整亮度
        camera.saturation(0)  # 饱和度
        camera.speffect(0)  # 特效：正常
        camera.whitebalance(1)  # 白平衡：自动

        # 设置帧率
        #camera.framesize(FRAME_SIZE)

        print("摄像头初始化完成")
        return True
    except Exception as e:
        print(f"摄像头初始化出错: {e}")
        return False

# 发送图像数据到服务器
def send_image():
    handshake_attempts = 0
    max_handshake_attempts = 10

    # 握手服务器
    while handshake_attempts < max_handshake_attempts:
        try:
            s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
            s.settimeout(5)  # 设置超时时间
            print('正在连接服务器...')
            s.connect((SERVER_IP, SERVER_PORT))
            print('正在握手服务器...')

            handshake = "ESP32cam"  # 发送握手信号
            s.sendall(handshake.encode('utf-8'))
            confirm = s.recv(1024).decode('utf-8')
            if confirm == "ok":  # 等待服务器发送确认信号
                print("收到确认信号，开始发送图像")
                break
            else:
                print(f"未收到确认信号，断开连接 (收到: {confirm})")
                s.close()
                handshake_attempts += 1
                time.sleep(1)
        except OSError as e:
            handshake_attempts += 1
            num = round(random.uniform(1, 3), 1)  # random a和b之间的随机浮点数,round 四舍五入到小数点后一位
            print(f"连接失败 ({handshake_attempts}/{max_handshake_attempts}): {e}")
            print(f"{num}s后重试握手...")
            time.sleep(num)
            if s:
                s.close()

        if handshake_attempts >= max_handshake_attempts:
            print("达到最大握手尝试次数，返回主循环重新连接WiFi")
            return False

    # 发送图像
    frames_sent = 0
    start_time = time.time()
    try:
        while True:
            # 捕获图像
            buf = camera.capture()
            if not buf:
                print("图像捕获失败，重试...")
                time.sleep(0.1)
                continue

            # 发送图像大小
            s.sendall(len(buf).to_bytes(4, 'little'))
            # 发送图像数据
            s.sendall(buf)

            # 计算帧率
            frames_sent += 1
            elapsed = time.time() - start_time
            if elapsed >= 5:  # 每5秒显示一次帧率
                fps = frames_sent / elapsed
                print(f"发送帧率: {fps:.1f} FPS")
                frames_sent = 0
                start_time = time.time()
                # 执行垃圾回收
                gc.collect()
            else:
                print(".", end='')

            # 根据需要调整发送间隔
            time.sleep(0.05)

            # 低功耗模式
            if LOW_POWER_MODE and frames_sent % 10 == 0:
                # 每10帧休眠一次以节省电力
                time.sleep(0.2)

    except Exception as e:
        print(f'\n图像传输出错: {e}')
        return False
    finally:
        if 's' in locals() and s:
            s.close()
            print("关闭socket连接")
    return True

# 主程序
def main():
    print("\n===== ESP32-CAM 图像传输程序启动 =====\n")
    print(f"版本: 1.3.0 | 模式: {'低功耗' if LOW_POWER_MODE else '正常'}")
    print(f"图像质量: {IMAGE_QUALITY} | 目标帧率: {FRAME_RATE} FPS")
    print(f"主WiFi: {MAIN_SSID} | 备用WiFi数量: {len(BACKUP_WIFI_LIST)}")
    print("======================================\n")

    # 初始扫描WiFi
    scan_wlan()

    # 主循环
    while True:
        try:
            # 连接WiFi
            if not connect_wifi():
                print("WiFi连接失败，重试...")
                time.sleep(RECONNECT_DELAY)
                continue

            # 初始化摄像头
            if not init_camera():
                print("摄像头初始化失败，重试...")
                time.sleep(2)
                continue

            # 发送图像
            if not send_image():
                print("图像传输失败，重新连接...")
                time.sleep(1)
                continue

        except KeyboardInterrupt:
            print("\n程序被用户中断")
            break
        except Exception as e:
            print(f"主循环出错: {e}")
            time.sleep(5)

# 启动程序
if __name__ == "__main__":
    try:
        main()
    except Exception as e:
        print(f"程序崩溃: {e}")
    finally:
        # 清理资源
        camera.deinit()
        print("程序结束，已清理资源")

TCP通信需要接收终端（在使用场景来说就是上位机或者下位机）有相对的客户端程序

TCP图传的上位机（接收端）代码

def TCP_handle(self,processIP, processPort):
        self.s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) # 创建一个TCP套接字
        self.s.bind((processIP, int(processPort)))  # 绑定套接字到IP地址和端口
        self.s.listen(1)  # 开始监听
        print(f"TCP  套接字配置已完成\nIP:{processIP}\nPort:{processPort}\n随时监听...")

        self.s.settimeout(5) # 设置超时时间为5秒
        try:
            self.conn, self.addr = self.s.accept()
            self.conn.settimeout(5) ## 为了应对物联网设备因断电等异常导致的套接字连接存在但无法使用的情况
            print("连接已建立:", self.addr)
        except socket.timeout:
            print("等待连接超时，继续检查配置")
            self.s.close()
            return 404 #连接不理想(其它进程)则断开

        handshake = self.conn.recv(1024).decode('utf-8') # 握手过程
        if handshake == "ESP32cam":
            print("握手成功，开始接收图像数据")
            self.conn.sendall("ok".encode('utf-8'))
        else: # 握手失败的处理 [重连]
            num = round(random.uniform(0, 3), 1) #random a和b之间的随机浮点数,round 四舍五入到小数点后一位
            print(f"无效的握手信号，断开连接")
            self.conn.close()
            return 404 #连接不理想(其它进程)则断开
        while not self.isInterruptionRequested():
            try:
                fps = 0
                start_time = time.time()
                # 接收图像数据大小信息，并启动超时计时器
                data = self.conn.recv(4)
                if len(data) < 4:
                    print("图像大小信息接收失败")
                    break
                image_size = int.from_bytes(data, 'little') # print(f"图像大小:{image_size} ", end='', flush=True)
                # 接收图像数据
                data_received = b''
                while len(data_received) < image_size:
                    packet = self.conn.recv(image_size - len(data_received))
                    if not packet :  #or len(packet)<1000
                        print("图像数据包接收失败")
                        break
                    data_received += packet
                # 将接收到的数据转换为图像
                image = Image.open(io.BytesIO(data_received))
                img = np.asarray(image)
                img = cv2.cvtColor(img, cv2.COLOR_RGB2BGR)
                self.img_shape = img.shape[1], img.shape[0]  # 获取图像的宽度和高度 (width, height)
                # 计算帧率
                end_time = time.time()
                elapsed_time = end_time - start_time
                start_time = end_time
                fps = 1 / elapsed_time
                fps_text=f"FPS:{fps:.1f}"

直接从我写的一个QThread线程的对象里拆出来的，其中变量名称请视使用情况修改

特意写了额外的鉴别口令，即下位机（ESP32cam）这端发送鉴别口令"ESP32cam"，上位机接收到后回复"ok"，下位机接收到"ok"后，开始图传通信。过程中任何一步口令鉴别失败都会导致两方清除套接，然后进入等待握手的状态。

使用鉴别口令的原因

那肯定有同学就要问了："TCP通信3次握手，为什么还要再写一个鉴别口令呢？"

实则不然，如果只是在局域网内测试的话，是不容易发现握手错误的bug的...

握手的要求其实抽象的说是TCP通信协议本身，想要别握错还是要额外鉴别一下的，比如说使用鉴别口令。

这个额外鉴别口令可以解决使用内网穿透或者端口转发时被一些其它服务握手，导致通信失败。

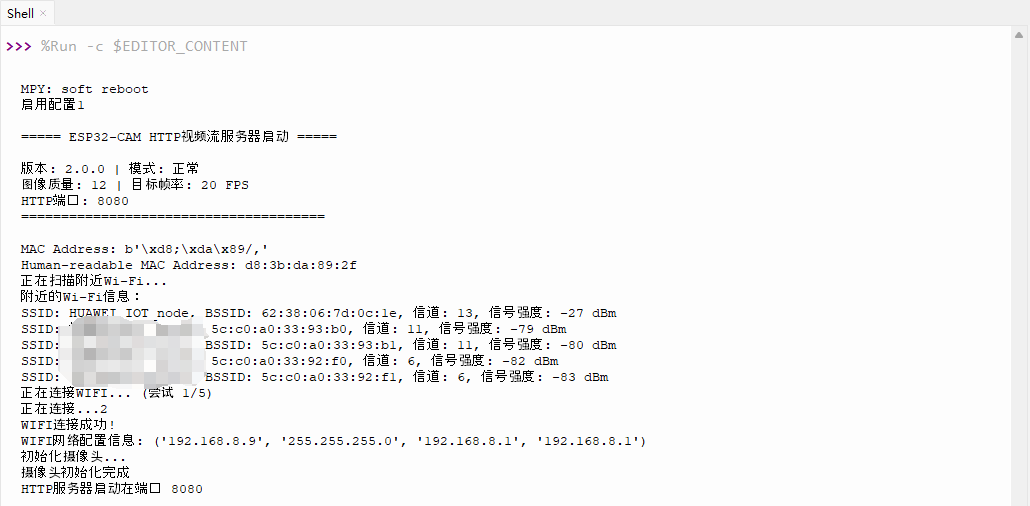

HTTP图传通信代码

import socket
import network
import camera
import time
import random
import gc
import machine

###-----该模块为CAM2,监测right视角-----###
###  HTTP端口8080

# 配置选项
MAX_RECONNECT_ATTEMPTS = 5  # 最大重连尝试次数
RECONNECT_DELAY = 3  # 重连延迟时间(秒)
IMAGE_QUALITY = 12  # 图像质量(0-63，值越小质量越高)
FRAME_RATE = 20  # 每秒帧数
LOW_POWER_MODE = False  # 低功耗模式
HTTP_PORT = 8080  # HTTP服务器端口

# WiFi配置
choose = 1
if choose == 1:
    print(f"启用配置{choose}")
    # WiFi连接设置
    SSID = 'HUAWEI_IOT_node'  # WiFi名称
    PASSWORD = '111gogogo'  # WiFi密码
elif choose == 2:
    print(f"启用配置{choose}")
    # WiFi连接设置
    SSID = 'test'  # WiFi名称 'test'
    PASSWORD = 'wdnmdwdnmd'  # WiFi密码

# 全局变量
connection_attempts = 0
last_connection_time = 0

# 扫描并打印详细的附近Wi-Fi信息
def scan_wlan():
    try:
        wlan = network.WLAN(network.STA_IF)
        wlan.active(False)
        wlan.active(True)
        mac_address = wlan.config('mac')
        print("MAC Address:", mac_address)
        mac_address_hex = ':'.join(['{:02x}'.format(b) for b in mac_address if b != 44])  # 过滤掉非十六进制字符，如逗号
        print("Human-readable MAC Address:", mac_address_hex)

        print("正在扫描附近Wi-Fi...")
        nets = wlan.scan()
        print("附近的Wi-Fi信息：")
        for wifi in nets:
            # 检查元素是否为字节串并解码
            ssid = wifi[0].decode('utf-8') if isinstance(wifi[0], bytes) else wifi[0]
            bssid = ':'.join(['{:02x}'.format(b) for b in wifi[1]])
            channel = wifi[2]
            signal = wifi[3]

            # 打印所有信息
            print(f"SSID: {ssid}, BSSID: {bssid}, 信道: {channel}, 信号强度: {signal} dBm")
        return True
    except Exception as e:
        print(f"Wi-Fi扫描出错: {e}")
        return False

# 连接到WiFi网络
def connect_wifi():
    global connection_attempts, last_connection_time

    # 检查是否需要等待重连
    current_time = time.time()
    if current_time - last_connection_time < RECONNECT_DELAY and connection_attempts > 0:
        wait_time = RECONNECT_DELAY - (current_time - last_connection_time)
        if wait_time > 0:
            print(f"等待 {wait_time:.1f} 秒后重试连接...")
            time.sleep(wait_time)

    wlan = network.WLAN(network.STA_IF)
    wlan.active(True)

    if not wlan.isconnected():
        # 增加连接尝试次数
        connection_attempts += 1
        last_connection_time = time.time()

        print(f'正在连接WIFI... (尝试 {connection_attempts}/{MAX_RECONNECT_ATTEMPTS})')
        try:
            wlan.connect(SSID, PASSWORD)  # 连接到指定的WiFi网络

            # 设置连接超时
            timeout = 15  # 15秒超时
            start_time = time.time()
            i = 1

            while not wlan.isconnected():
                if time.time() - start_time > timeout:
                    print("连接超时！")
                    break

                print(f"正在连接...{i}", end='\r')
                i += 1
                time.sleep(1)  # 每次循环等待1秒

            if wlan.isconnected():
                connection_attempts = 0  # 重置连接尝试次数
                print('\nWIFI连接成功!')
                print('WIFI网络配置信息:', wlan.ifconfig())
                return True
            else:
                print("\nWIFI连接失败!")
                if connection_attempts >= MAX_RECONNECT_ATTEMPTS:
                    print(f"已达到最大重连次数({MAX_RECONNECT_ATTEMPTS})，将重置设备...")
                    time.sleep(1)
                    machine.reset()  # 重置设备
                return False

        except Exception as e:
            print(f"WIFI连接出错: {e}")
            return False
    else:
        print('WIFI已连接')
        print('WIFI网络配置信息:', wlan.ifconfig())
        return True

# 初始化摄像头
def init_camera():
    try:
        print("初始化摄像头...")
        camera.deinit()
        camera.init()

        # 设置摄像头参数
        camera.flip(1)  # 根据需要调整摄像头方向
        camera.mirror(0)  # right不翻转
        camera.quality(IMAGE_QUALITY)  # 设置图像质量
        camera.contrast(2)  # 增加对比度
        camera.brightness(1)  # 调整亮度
        camera.saturation(0)  # 饱和度
        camera.speffect(0)  # 特效：正常
        camera.whitebalance(1)  # 白平衡：自动

        print("摄像头初始化完成")
        return True
    except Exception as e:
        print(f"摄像头初始化出错: {e}")
        return False

# 处理HTTP请求
def handle_http_request(client_socket):
    try:
        request = client_socket.recv(1024).decode('utf-8')
        if not request:
            return

        # 解析请求行
        request_line = request.split('\r\n')[0]
        method, path, _ = request_line.split(' ')

        print(f"收到HTTP请求: {method} {path}")

        if path == '/':
            # 返回简单的HTML页面，包含视频流
            response = "HTTP/1.1 200 OK\r\nContent-Type: text/html\r\n\r\n"
            response += "<html><body>"
            response += "<h1>ESP32-CAM 视频流</h1>"
            response += f"<img src='/stream' style='width:640px;height:480px;'>"
            response += "</body></html>"
            client_socket.send(response.encode('utf-8'))

        elif path == '/stream':
            # 发送MJPEG流
            response = "HTTP/1.1 200 OK\r\nContent-Type: multipart/x-mixed-replace; boundary=frame\r\n\r\n"
            client_socket.send(response.encode('utf-8'))

            try:
                while True:
                    # 捕获图像
                    buf = camera.capture()
                    if not buf:
                        continue

                    # 发送图像帧
                    frame_header = "--frame\r\nContent-Type: image/jpeg\r\nContent-Length: {}\r\n\r\n".format(len(buf))
                    client_socket.send(frame_header.encode('utf-8'))
                    client_socket.send(buf)
                    client_socket.send(b'\r\n')

                    # 低功耗模式处理
                    if LOW_POWER_MODE:
                        time.sleep(0.2)
                    else:
                        time.sleep(1/FRAME_RATE)

                    # 执行垃圾回收
                    gc.collect()

            except Exception as e:
                print(f"视频流传输出错: {e}")

        else:
            # 返回404
            response = "HTTP/1.1 404 Not Found\r\nContent-Type: text/plain\r\n\r\n404 Not Found"
            client_socket.send(response.encode('utf-8'))

    except Exception as e:
        print(f"处理HTTP请求出错: {e}")
    finally:
        client_socket.close()

# 启动HTTP服务器
def start_http_server():
    try:
        s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
        s.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
        s.bind(('0.0.0.0', HTTP_PORT))
        s.listen(5)
        print(f"HTTP服务器启动在端口 {HTTP_PORT}")

        while True:
            try:
                client_socket, addr = s.accept()
                print(f"客户端连接: {addr}")
                handle_http_request(client_socket)
            except Exception as e:
                print(f"处理客户端连接出错: {e}")

    except Exception as e:
        print(f"HTTP服务器启动失败: {e}")
        return False
    finally:
        if 's' in locals():
            s.close()

# 主程序
def main():
    print("\n===== ESP32-CAM HTTP视频流服务器启动 =====\n")
    print(f"版本: 2.0.0 | 模式: {'低功耗' if LOW_POWER_MODE else '正常'}")
    print(f"图像质量: {IMAGE_QUALITY} | 目标帧率: {FRAME_RATE} FPS")
    print(f"HTTP端口: {HTTP_PORT}")
    print("======================================\n")

    # 初始扫描WiFi
    scan_wlan()

    # 主循环
    while True:
        try:
            # 连接WiFi
            if not connect_wifi():
                print("WiFi连接失败，重试...")
                time.sleep(RECONNECT_DELAY)
                continue

            # 初始化摄像头
            if not init_camera():
                print("摄像头初始化失败，重试...")
                time.sleep(2)
                continue

            # 启动HTTP服务器
            start_http_server()

        except KeyboardInterrupt:
            print("\n程序被用户中断")
            break
        except Exception as e:
            print(f"主循环出错: {e}")
            time.sleep(5)

# 启动程序
if __name__ == "__main__":
    try:
        main()
    except Exception as e:
        print(f"程序崩溃: {e}")
    finally:
        # 清理资源
        camera.deinit()
        print("程序结束，已清理资源")

http通信是api形式的，

——定义了"/stream"路由为视频流api，

——根路由"/"为页面，嵌入了"/stream"的视频流

使用Thonny启动调试模式，让ESP32cam运行一下。我留下很多打印相关的信息与参数的代码，在调试时可以直观的查看设备运行情况，在不使用专业调试模式的情况下，可以快速查找与解决bug

在wifi联网后，使用局域网ip端口+路由地址的形式访问，比如在浏览器访问http://192.168.8.9:8080（ESP32cam和你访问浏览器的那个设备在一个局域网下，这里假设是192.168.8.9），会有一个网页，内容如下图

关于汉字乱码，这个和编码解码有关系，专门去修改一下编码解码方式就行了...

此时，使用http://192.168.8.9:8080/stream就可以直接接收视频流了

这种api图传通信还是很方便的，毕竟TCP协议是传输层协议，而HTTP是应用层协议，HTTP协议是建立在TCP协议基础之上的，所以HTTP通信虽然不一定有用websocket直接写上位机和下位机通信的效率高，但是会更方便开发，毕竟接收视频流只用一串url

其它事项

代码适用于常见的ESP32cam、ESP32S3cam、ESP32wrover-cam等开发板，具体支持情况需要看MicroPython固件里封装的camera库的调用方式，部分情况下代码需要进行小幅度修改才能使用
